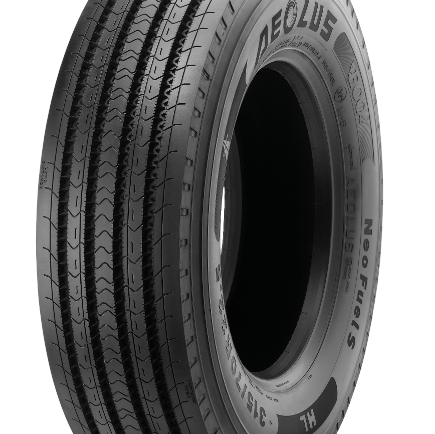

NEO FUEL S
- Suitable for Euro 6 legislation (High Load)
- Water discharge and handling thanks to pattern with connected blocks and 4 longitudinal grooves
- Temperature control at high speeds thanks to special groove design (sipes)
- Long life-span due to Z-shaped asymmetrical pattern that prevents stone build-up
- Anti-wear layer in tread compound improves fuel economy, kilometrage and life-span
- Full multi-layer structure makes casing strong and suitable for Regrooving
- Uniform wear thanks to reinforced shoulder design
Technical data
Scroll naar rechts voor meer
| Size | Profile | LI/SS | TL/TT | M+S | Rolling Resistance | Grip | Sound | |
|---|---|---|---|---|---|---|---|---|
| 315/70R22.5 | NEO FUEL S | 156/150L (154/150M) | TL | Yes | B | B | 72 dB (2) | Details |
| 315/70R22.5 | NEO FUEL S | 156/150L (154/150M) | TL | Yes | B | B | 72 dB (2) | Details |
| 295/80R22.5 | NEO FUEL S | 154/149M | TL | Yes | B | B | 72 dB (2) | Details |
| 295/60R22.5 | NEO FUEL S | 150/147K (149/146L) | TL | Yes | C | D | 72 dB (2) | Details |
| 295/80R22.5 | NEO FUEL S | 154/149M | TL | Yes | B | B | 72 dB (2) | Details |
| 315/80R22.5 | NEO FUEL S | 158/150L (154/150M) | TL | Yes | B | B | 72 dB (2) | Details |
| 315/80R22.5 | NEO FUEL S | 158/150L (154/150M) | TL | Yes | B | B | 72 dB (2) | Details |
| 295/60R22.5 | NEO FUEL S | 150/147K (149/146L) | TL | Yes | C | D | 72 dB (2) | Details |
Specifications
| Size | 315/70R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 156/150L (154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | productDetail.technicalData.usage.internationaal |
| M+S | Yes |
| Diameter (mm) | 1,014 |
| Width (mm) | 313 |
| Loaded radius (mm) | 471 |
| Rolling circumference (mm) | 3,093 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 9.75 - 22.5 |
| Tread (mm) | 14.5 |
| Load capacity (kg-km / h) | 4000 - 120 / 3750 - 130 |
| Load capacity (kg-km / h) dual | 3350 - 120 / 3350 - 130 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
| Axl position | Steer axle |
Specifications
| Size | 315/70R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 156/150L (154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,020 |
| Width (mm) | 316 |
| Loaded radius (mm) | 0 |
| Rolling circumference (mm) | 3,111 |
| Recommended rim | 9.00 - 22.5 |
| Tread (mm) | 18 |
| Load capacity (kg-km / h) | 4000 - 120 / 3750 - 130 |
| Load capacity (kg-km / h) dual | 3350 - 120 / 3350 - 130 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
Specifications
| Size | 295/80R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 154/149M |
| Ply rating | 18 |
| TL/TT | TL |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,041 |
| Width (mm) | 300 |
| Loaded radius (mm) | 0 |
| Rolling circumference (mm) | 3,175 |
| Recommended rim | 9.00 - 22.5 |
| Tread (mm) | 13.5 |
| Load capacity (kg-km / h) | 3750 - 130 / 3250 - 130 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
Specifications
| Size | 295/60R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 150/147K (149/146L) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | productDetail.technicalData.usage.internationaal |
| M+S | Yes |
| Diameter (mm) | 918 |
| Width (mm) | 287 |
| Loaded radius (mm) | 427 |
| Rolling circumference (mm) | 2,800 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 9.75 - 22.5 |
| Tread (mm) | 13.5 |
| Load capacity (kg-km / h) | 3350 - 110 / 3250 - 120 |
| Load capacity (kg-km / h) dual | 3075 - 110 / 3000 - 120 |
| Air pressure (bar) | 9 |
| Wet grip | D |
| fuelEfficiency | C |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
| Axl position | Steer axle |
Specifications
| Size | 295/80R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 154/149M |
| Ply rating | 18 |
| TL/TT | TL |
| Application | productDetail.technicalData.usage.internationaal |
| M+S | Yes |
| Diameter (mm) | 1,013 |
| Width (mm) | 312 |
| Loaded radius (mm) | 490 |
| Rolling circumference (mm) | 3,090 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 8.25 - 22.5 |
| Tread (mm) | 14.5 |
| Load capacity (kg-km / h) | 3750 - 130 |
| Load capacity (kg-km / h) dual | 3250 - 130 |
| Air pressure (bar) | 8.3 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
| Axl position | Steer axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 158/150L (154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | productDetail.technicalData.usage.internationaal |
| M+S | Yes |
| Diameter (mm) | 1,080 |
| Width (mm) | 318 |
| Loaded radius (mm) | 478 |
| Rolling circumference (mm) | 3,294 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 8.25 - 22.5 |
| Tread (mm) | 14 |
| Load capacity (kg-km / h) | 4250 - 120 / 3750 - 130 |
| Load capacity (kg-km / h) dual | 3350 - 120 / 3350 - 130 |
| Air pressure (bar) | 8.3 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
| Axl position | Steer axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 158/150L (154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,080 |
| Width (mm) | 318 |
| Loaded radius (mm) | 0 |
| Rolling circumference (mm) | 3,294 |
| Recommended rim | 9.00 - 22.5 |
| Tread (mm) | 14 |
| Load capacity (kg-km / h) | 4250 - 120 / 3750 - 130 |
| Load capacity (kg-km / h) dual | 3350 - 120 / 3350 - 130 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| fuelEfficiency | B |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
Specifications
| Size | 295/60R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 150/147K (149/146L) |
| Ply rating | 18 |
| TL/TT | TL |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 918 |
| Width (mm) | 287 |
| Loaded radius (mm) | 0 |
| Rolling circumference (mm) | 2,800 |
| Recommended rim | 9.00 - 22.5 |
| Tread (mm) | 13.5 |
| Load capacity (kg-km / h) | 3350 - 110 / 3250 - 120 |
| Load capacity (kg-km / h) dual | 3075 - 110 / 3000 - 120 |
| Air pressure (bar) | 9 |
| Wet grip | D |
| fuelEfficiency | C |
| Sound (decibel) | 72 dB |
| Sound (wave) | 2 |
