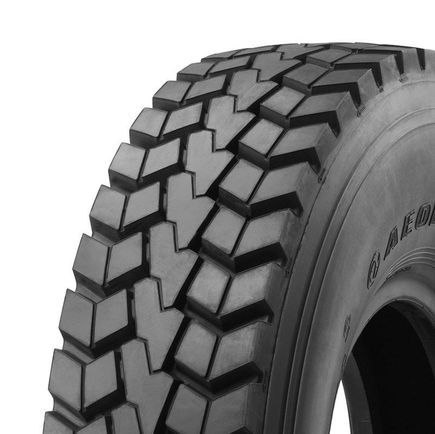

ADC53
- Robust, hardwearing, safe and reliable
- Specially designed, particularly strong three-row block-type tread
- Excellent traction on stony, sandy or muddy ground
- Attention has been paid to the tread pattern, ensuring that it is very capable of self-cleaning
Technical data
Scroll naar rechts voor meer
| Size | Profile | LI/SS | TL/TT | 3PMSF | Rolling Resistance | Grip | Sound | |
|---|---|---|---|---|---|---|---|---|
| 12.00R20 | ADC53 | 154/151K | TT | E | C | 73 dB (1) | Details | |
| 12.00R24 | ADC53 | 160/157K | TT | E | C | 73 dB (2) | Details | |
| 11R22.5 | ADC53 | 146/143L (148/145K) | TL | E | B | 73 dB (2) | Details | |
| 12.00R20 | ADC53 | 154/151K | TT | E | C | 73 dB (2) | Details | |
| 12R22.5 | ADC53 | 152/149L | TL | E | C | 71 dB (1) | Details | |
| 315/80R22.5 | ADC53 | 154/151M (156/150L) | TL | C | C | 73 dB (1) | Details | |
| 12R22.5 | ADC53 | 152/149L | TL | D | C | 71 dB (1) | Details | |
| 13R22.5 | ADC53 | 154/151K (156/150G) | TL | D | C | 73 dB (1) | Details | |
| 295/80R22.5 | ADC53 | 152/149L | TL | D | C | 76 dB (3) | Details |
Specifications
| Size | 12.00R20 |
|---|---|
| Profile | ADC53 |
| LI/SS | 154/151K |
| Ply rating | 18 |
| TL/TT | TT |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,130 |
| Width (mm) | 310 |
| Loaded radius (mm) | 518 |
| Rolling circumference (mm) | 3,422 |
| Recommended rim | 8.5 - 20 |
| Permitted rim | 8.50V 9.0 - 20 |
| Tread (mm) | 20.6 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | E |
| Sound (decibel) | 73 dB |
| Sound (wave) | 1 |
| Axle position | Drive axle |
Specifications
| Size | 12.00R24 |
|---|---|
| Profile | ADC53 |
| LI/SS | 160/157K |
| Ply rating | 20 |
| TL/TT | TT |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,230 |
| Width (mm) | 313 |
| Loaded radius (mm) | 574 |
| Rolling circumference (mm) | 3,861 |
| Recommended rim | 8.5 - 24 |
| Permitted rim | 8.50V 9.0 - 24 |
| Tread (mm) | 20.6 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | E |
| Sound (decibel) | 73 dB |
| Sound (wave) | 2 |
| Axle position | Drive axle |
Specifications
| Size | 11R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 146/143L (148/145K) |
| Ply rating | 16 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,066 |
| Width (mm) | 281 |
| Loaded radius (mm) | 491 |
| Rolling circumference (mm) | 3,348 |
| Recommended rim | 8.25 - 22.5 |
| Permitted rim | 7.50 - 22.5 |
| Tread (mm) | 22.5 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | B |
| Fuel efficiency | E |
| Sound (decibel) | 73 dB |
| Sound (wave) | 2 |
| Axle position | Drive axle |
Specifications
| Size | 12.00R20 |
|---|---|
| Profile | ADC53 |
| LI/SS | 154/151K |
| Ply rating | 18 |
| TL/TT | TT |
| Application | On-offroad |
| M+S | Yes |
| Diameter (mm) | 1,130 |
| Width (mm) | 310 |
| Loaded radius (mm) | 518 |
| Rolling circumference (mm) | 3,422 |
| Recommended rim | 8.5 - 20 |
| Permitted rim | 8.50V 9.0 - 20 |
| Tread (mm) | 20.6 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | E |
| Sound (decibel) | 73 dB |
| Sound (wave) | 2 |
| Axle position | Drive axle |
Specifications
| Size | 12R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 152/149L |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,081 |
| Width (mm) | 300 |
| Loaded radius (mm) | 507 |
| Rolling circumference (mm) | 3,282 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 8.25 - 22.5 |
| Tread (mm) | 19.5 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 9.3 |
| Wet grip | C |
| Fuel efficiency | E |
| Sound (decibel) | 71 dB |
| Sound (wave) | 1 |
| Axle position | Drive axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 154/151M (156/150L) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,088 |
| Width (mm) | 315 |
| Loaded radius (mm) | 490 |
| Rolling circumference (mm) | 3,318 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 9.75 - 22.5 |
| Tread (mm) | 19.5 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | C |
| Sound (decibel) | 73 dB |
| Sound (wave) | 1 |
| Axle position | Drive axle |
Specifications
| Size | 12R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 152/149L |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,081 |
| Width (mm) | 300 |
| Loaded radius (mm) | 507 |
| Rolling circumference (mm) | 3,282 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 8.25 - 22.5 |
| Tread (mm) | 19.5 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 9.3 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 71 dB |
| Sound (wave) | 1 |
| Axle position | Drive axle |
Specifications
| Size | 13R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 154/151K (156/150G) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,129 |
| Width (mm) | 316 |
| Loaded radius (mm) | 532 |
| Rolling circumference (mm) | 3,456 |
| Recommended rim | 9.00 - 22.5 |
| Tread (mm) | 20.6 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 8.3 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 73 dB |
| Sound (wave) | 1 |
| Axle position | Drive axle |
Specifications
| Size | 295/80R22.5 |
|---|---|
| Profile | ADC53 |
| LI/SS | 152/149L |
| Ply rating | 18 |
| TL/TT | TL |
| Application | On-offroad |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,055 |
| Width (mm) | 298 |
| Loaded radius (mm) | 0 |
| Rolling circumference (mm) | 3,218 |
| Recommended rim | 9.00 - 22.5 |
| Permitted rim | 8.25 - 22.5 |
| Tread (mm) | 19 |
| Load capacity (kg-km/h) | 0.000000 |
| Load capacity (kg-km/h) dual | 0.000000 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 76 dB |
| Sound (wave) | 3 |
| Axle position | Drive axle |
