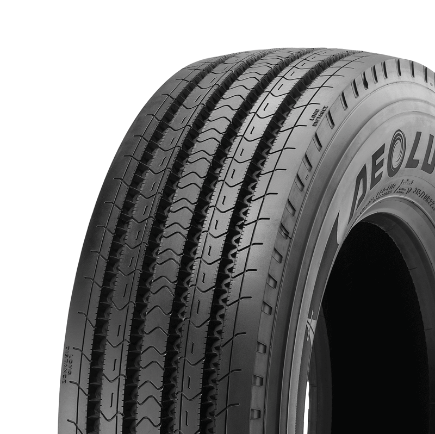

NEO FUEL S
- Suitable for Euro 6 legislation (High Load)
- Water discharge and handling thanks to pattern with connected blocks and 4 longitudinal grooves
- Temperature control at high speeds thanks to special groove design (sipes)
- Long life-span due to Z-shaped asymmetrical pattern that prevents stone build-up
- Anti-wear layer in tread compound improves fuel economy, kilometrage and life-span
- Full multi-layer structure makes casing strong and suitable for Regrooving
- Uniform wear thanks to reinforced shoulder design
Technical data
Scroll naar rechts voor meer
| Size | Profile | LI/SS | TL/TT | 3PMSF | Rolling Resistance | Grip | Sound | |
|---|---|---|---|---|---|---|---|---|
| 295/60R22.5 | NEO FUEL S | 150/147K(149/146L) | TL | D | C | 72 dB () | Details | |
| 315/70R22.5 | NEO FUEL S | 156/150L(154/150M) | TL | B | B | 72 dB () | Details | |
| 315/80R22.5 | NEO FUEL S | 158/150L(154/150M) | TL | B | C | 71 dB () | Details |
Specifications
| Size | 295/60R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 150/147K(149/146L) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Long distance |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 918 |
| Width (mm) | 287 |
| Rolling circumference (mm) | 2,800 |
| Recommended rim | 9.00 |
| Tread (mm) | 13.5 |
| Load capacity (kg-km/h) | 3350.000000 |
| Load capacity (kg-km/h) dual | 3250.000000 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | D |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/70R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 156/150L(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Long distance |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,020 |
| Width (mm) | 316 |
| Rolling circumference (mm) | 3,111 |
| Recommended rim | 9.00 |
| Tread (mm) | 14.5 |
| Air pressure (bar) | 9 |
| Wet grip | B |
| Fuel efficiency | B |
| Sound (decibel) | 72 dB |
| Axle position | Steer axle |
Specifications
| Size | 315/80R22.5 |
|---|---|
| Profile | NEO FUEL S |
| LI/SS | 158/150L(154/150M) |
| Ply rating | 18 |
| TL/TT | TL |
| Application | Long distance |
| 3PMSF | |
| M+S | Yes |
| Diameter (mm) | 1,080 |
| Width (mm) | 318 |
| Rolling circumference (mm) | 3,294 |
| Recommended rim | 9.00 |
| Tread (mm) | 14 |
| Air pressure (bar) | 9 |
| Wet grip | C |
| Fuel efficiency | B |
| Sound (decibel) | 71 dB |
| Axle position | Steer axle |
